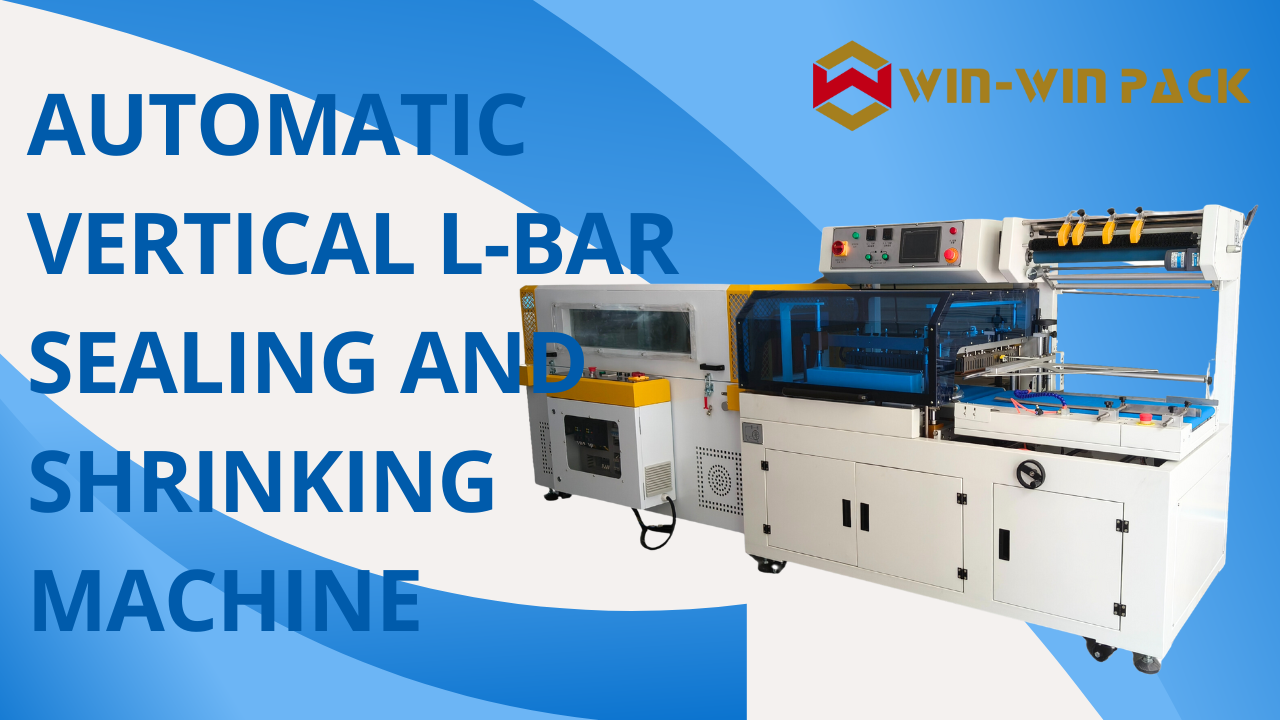

**Automatic Vertical L-bar Sealing and Shrinking Machine**

**Power Supply and Consumption:**

Powered by a 220V supply at 50/60Hz, this machine operates with remarkable efficiency, consuming less than 4kW of power. Such optimization ensures cost-effectiveness and environmental sustainability in operation.

**Sealing System:**

The heart of any sealing machine lies in its sealing system. This machine boasts a stainless steel heating element with an extended lifespan, ensuring durability and consistent performance. The sealing blade, crafted from high-temperature-resistant materials, ensures firm and aesthetically pleasing seals, further enhanced by a Teflon coating for non-stick properties. Temperature control is precise, ranging from 0 to 300°C, facilitated by Xiamen Yudian digital temperature controllers and imported thermal sensors.

**Sealing and Cutting Dimensions:**

With electrically adjustable height, this machine accommodates varying package sizes with ease. Its maximum sealing dimensions, where L+H is less than 450mm, W+H less than 350mm, and H less than 170mm, offer versatility for a range of packaging needs.

**Drive System:**

The sealing mechanism is driven by Uddeholm servo motors, ensuring robust and stable seals, indispensable for packaging integrity.

**Conveying System:**

Efficient product transfer is ensured by a PU conveyor belt driven by integrated servo motors, complemented by precise detection facilitated by American Bonner photoelectric sensors, guaranteeing accurate and sensitive product conveyance and halting.

**Waste Recovery System:**

Central to sustainability is the waste recovery system, driven by robust motors and controlled by German SICK inductive switches, ensuring accurate and uniform waste recovery.

**Film Feeding System:**

Film feeding is smooth and consistent, thanks to powerful motors and precise length control facilitated by "Fu Shang" induction switches.

**Control Systems:**

The machine's operations are orchestrated by a combination of cutting-edge control systems. PLC control is handled by Huichuan, with intermediate relays sourced from Japan's Izumi. Interaction with the machine is facilitated through a 7-inch, 65,000-color touchscreen display from Kunlun Tongtai, ensuring intuitive operation and monitoring.

**Safety Features:**

Emergency switches sourced from Japan's Izumi ensure prompt response in critical situations, prioritizing operator safety.

**Structural Integrity:**

Constructed from carbon steel with powder coating, the machine's key components incorporate stainless steel and aluminum profiles, ensuring structural robustness and longevity.

**Packaging Speed and Material Compatibility:**

With a packaging speed ranging from 20 to 40 units per minute, the machine adapts to diverse packaging requirements. It accommodates POF/PE packaging films, catering to a variety of packaging materials.

**Pressure and Surface Treatment:**

Operating at 6-8KG/cm² pressure, the machine's surface treatment incorporates anti-corrosion measures such as powder coating or nickel plating, ensuring longevity even in demanding environments.

The Automatic Vertical L-bar Sealing and Shrinking Machine transcends conventional packaging machinery, embodying innovation, precision, and reliability. With its array of advanced features and meticulous engineering, it stands as a cornerstone in modern packaging solutions, meeting the demands of diverse industries with unparalleled efficiency and excellence.
