WIN-WIN PACK Automatic sleeve wrapper
2024-02-28

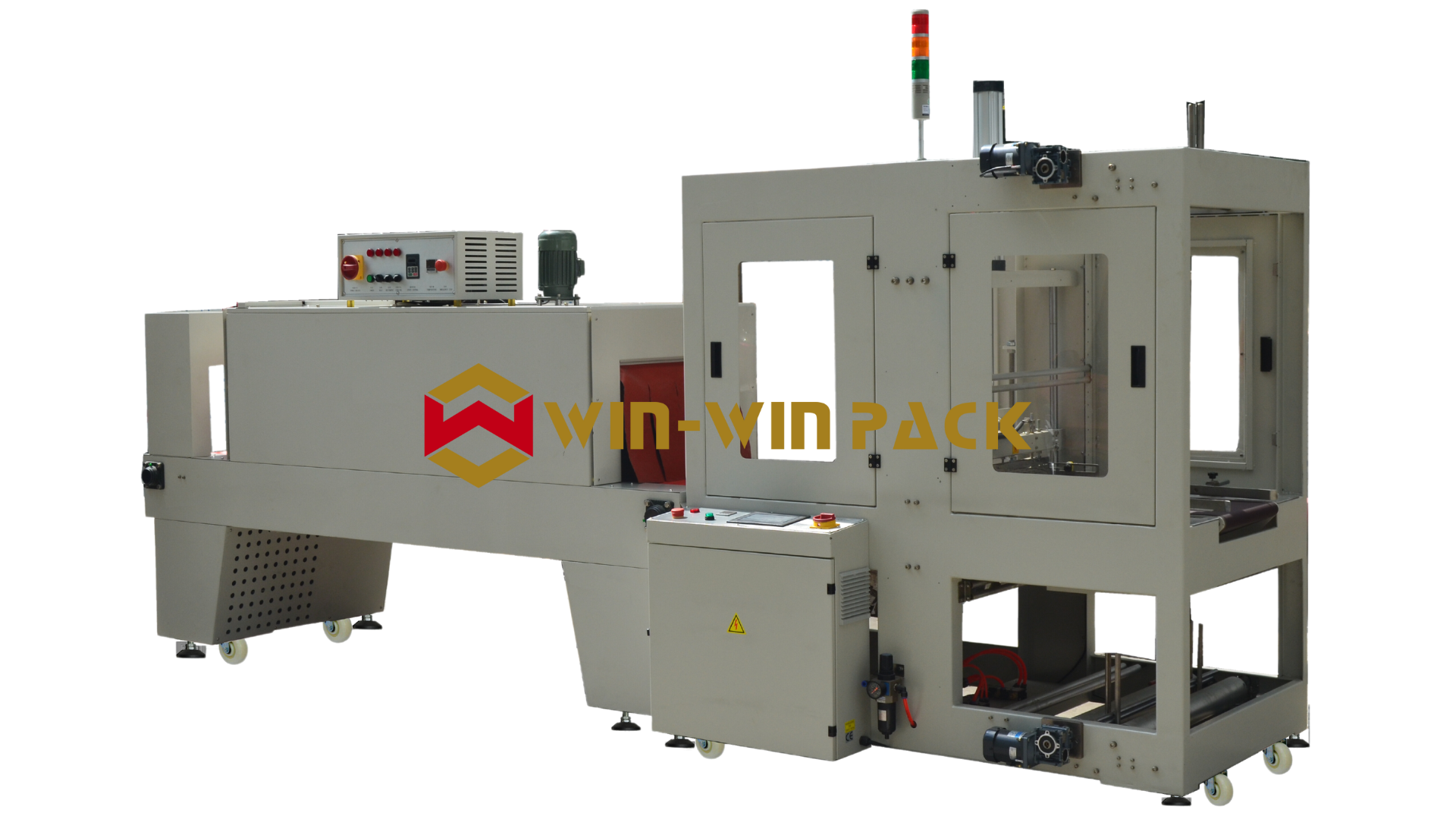

Automatic frontal feeding sleeve wrapper
Specification:
The equipment incorporates imported parts along with electrical and pneumatic components. It features a specially designed sealing cutter that ensures a flawless sealing line and prevents film adherence to the cutter. It offers automatic feeding, film feeding, and sealing functionalities, with non-polar mechanical speed adjustment for the feeding conveyor.
The adjustable front frame accommodates various product sizes, and automatic sensors are employed for detection, positioning, and sealing tasks. It packaging products of unlimited length and utilizes PF film.
Technical Parameters:
Model | WWP-6030F | WWP-6040 |
Packing speed | 8-22 pcs /min | 20~80pcs/min |
Packing size( W+H ) | ≤ 700mm | L1500×W650×H330mm |
Cutter size/ tunnel size | 850mm | L1800×W600×H400mm |
Power | 2 KW | 22KW |
Power supply | 3∮,220/380V, 50/60Hz | 3∮,220/380V, 50/ 60Hz |
Max current | 10A | 35A |
Air pressure | 6 kg/cm³ | / |
Machine size | L1650×W920×H1895mm | L2700×W900×H1640mm |
Machine weight | 465kg | 400kg |

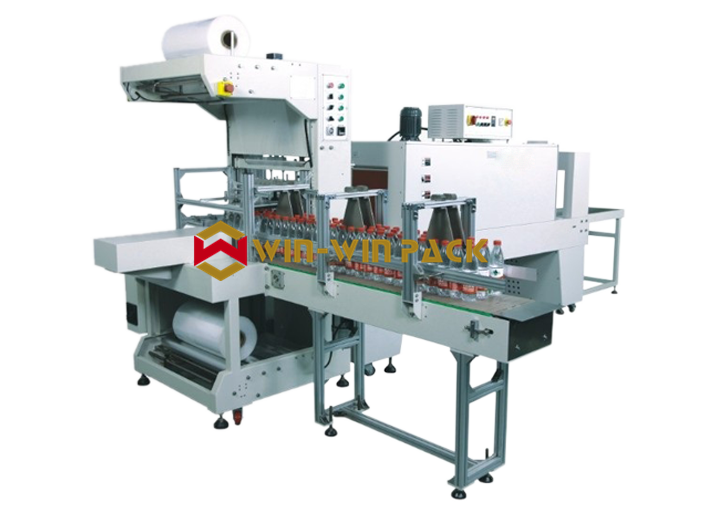

Automatic sleeve wrapper without tray
Specification:
This machine features advanced global components, ensuring stability and durability. Its specially designed sealing cutter ensures firm seals without cracks or sticking to the knife. The process is fully automated, including feeding, itemizing, product pushing, film feeding, and sealing. Mechanical speed adjustment allows for precise control, while the machine can package multiple sets without trays in rows 2, 3, and 4, with the option to change packing methods via a control panel switch. Operation is simple, with quick changeover between different types taking only 2-3 minutes. Automatic feeding devices can be tailored to different bottle shapes, and the feeding conveyor direction can be adjusted based on customer preferences (left or right). The machine is compatible with PE shrink film.
Technical Parameters:
Model | WWP-6030T | WWP -6040 |
Packing speed | 6-14 pcs /min | 20~80pcs/min |
Packing size( W+H ) | ≤ 700mm | L1500×W650×H330mm |
Cutter size/ tunnel size | 700mm | L1800×W600×H400mm |
Power | 2 KW | 22KW |
Power supply | 3∮,220/380V, 50/60Hz | 3∮,220/380V, 50/ 60Hz |
Max current | 10A | 35A |
Air pressure | 6 kg/cm³ | / |
Machine size | L1360×W2120×H1900mm | L2700×W900×H1640mm |
Machine weight | 465kg | 400kg |
The similarities and differences between the two machines:
Same:
1) It applicable for PE film
2) The kinds of the packing result is sleeve cover
3) The packing length of products is unlimited
Difference:
Name | Feed-in modes | Feed-in direction | Conveyor | Applicable | Speed |
Automatic frontal feeding sleeve wrapper | auto | frontal | No partitions | with tray | 8-22 pcs /min |
Automatic sleeve wrapper without tray | auto | Side(be left or right feeding) | partitions | without tray | 6-14 pcs /min |
