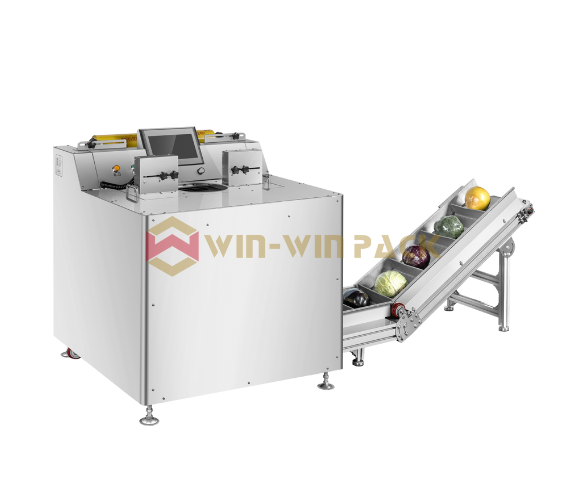

Model: WWP-FR15
Display (resolution): 10.2-inch TFT color touch screen (1024×600, screen ratio 16:9)
Power supply: AC 220V/50Hz
Power consumption: 0.9kW
Working temperature: 5℃-35℃
Working humidity: 10%-90%RH (no condensation)
Maximum packaging speed: 900 pieces/hour
Packaging shape: approximately spherical, elliptical, cylindrical, umbrella-shaped, etc.
Packaging diameter and height: 100mm-220mm ※① & 90mm-190mm ※①
Packaging weight: 100g-2000g
Film roll (width and diameter): 400mm-650mm & ≤160mm
Machine size (length×width×height): 1100×948×1060mm
Remarks ※ Maximum size combination is not available. Appropriate plastic wrap must be used
1. Operation method: Mechanical buttons+ high-precision touchscreen operation, speed of 15 packs per minute.
2. Rotary sealing method conserves film.
3. Compatible with automatic feeding systems, minimizing manual steps and increasing speed.
4. High-definition touchscreen with a simple, user-friendly interface.
5. Quick film replacement, taking only about 30 seconds.
6. Supports backend conveyor systems, weighing, and labeling equipment to meet diverse customer needs.
7. Made of stainless steel, offering wear and corrosion resistance.
8. Advanced sheet metal processing ensures a strong, robust structure.
9. Patented film-clamping technology guarantees stable film feeding and packaging.
10. Quick-release panel design allows for easy maintenance.
11. Compatible with various types of cling film.
12. Supports tray-free packaging for fruits and vegetables in multiple shapes.
