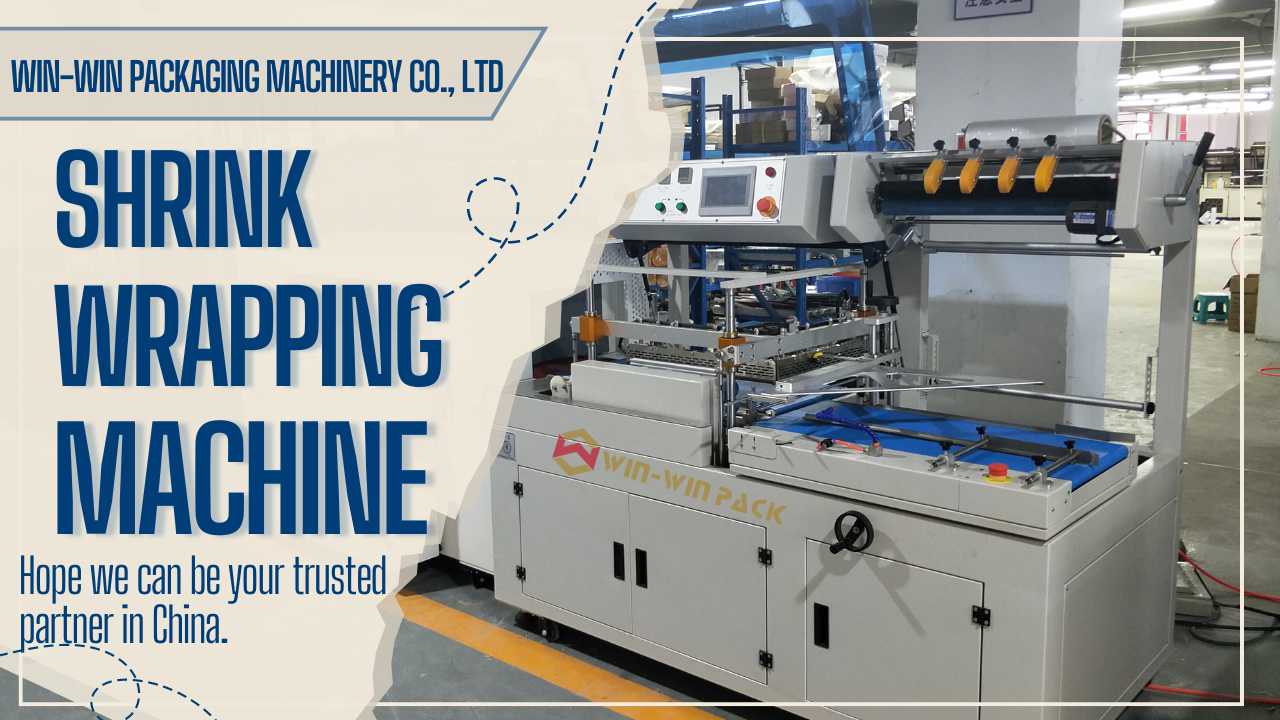

WIN-WIN PACK shrink wrapping machine

2024-05-21

A shrink wrapping machine is a device used for packaging items by heating the packaging film to make it shrink and tightly wrap around the items. Its main components and functions include:

Main Components

1. **Shrink Tunnel (Heating Chamber)**

   - **Function**: Uses heating elements (such as electric heating tubes or hot air circulation systems) to heat the packaging film, causing it to shrink and tightly adhere to the packaged items.

2. **Conveyor Belt**

   - **Function**: Transports the items to be packaged through the shrink tunnel. The speed of the conveyor belt can usually be adjusted to meet the requirements of different packaging materials and items.

3. **Sealing System**

   - **Function**: Seals the packaging film before heating to ensure that the film completely wraps around the items during the shrink process. The sealing system typically includes heat sealing knives or heat sealing bars.

4. **Control Panel**

   - **Function**: Used to set and adjust the machine's operating parameters, such as temperature, conveyor belt speed, and sealing time. Modern shrink wrapping machines are often equipped with PLC (Programmable Logic Controller) and touch screens for easy operation and monitoring.

5. **Cooling System**

   - **Function**: Cools the packaging film quickly after shrinking to solidify it, ensuring the stability and aesthetics of the packaged items.

6. **Film Roll Holder**

   - **Function**: Holds and secures the roll of packaging film, ensuring that the film can be smoothly fed into the sealing and heating areas.

7. **Sensors and Detection Systems**

   - **Function**: Detect the position, quantity of items, and status of the packaging film to ensure precise and continuous packaging.

Main Functions

1. **Automatic Feeding**

   - Uses conveyor belts or other conveying systems to automatically feed items into the packaging machine, reducing manual intervention and increasing production efficiency.

2. **Automatic Sealing**

   - Automatically completes the sealing of the packaging film, ensuring that the items are fully wrapped. The sealing system adjusts the sealing temperature and time according to different packaging materials and needs.

3. **Heat Shrinking**

   - Heats the packaging film in the heating chamber to make it shrink and tightly adhere to the surface of the items, forming a tight and aesthetically pleasing package.

4. **Cooling and Setting**

   - Quickly cools the packaging film after shrinking to solidify it, ensuring stable packaging shapes.

5. **Temperature and Speed Adjustment**

   - Adjusts the heating temperature and conveyor belt speed according to different items and packaging films to achieve the best packaging effect.

6. **Fault Detection and Alarms**

   - Monitors the machine's operating status in real-time through sensors and detection systems, providing timely alarms in case of faults to reduce downtime and losses.

 Application Range

Shrink wrapping machine are widely used in various industries such as food, beverages, pharmaceuticals, cosmetics, electronics, and stationery for packaging single or combined products. They improve the protection, aesthetics, and convenience of transportation and storage of the products.

Summary

The shrink wrapping machine completes the entire process from item conveyance, packaging film sealing, heat shrinking, to cooling and setting through a series of precise mechanical components and functional modules. It not only enhances packaging efficiency but also significantly improves the quality and aesthetics of the packaging.
