WIN-WIN PACK shrink wrapping machin external dimension

2024-05-18

External Dimension of the Machine and Packing box Size

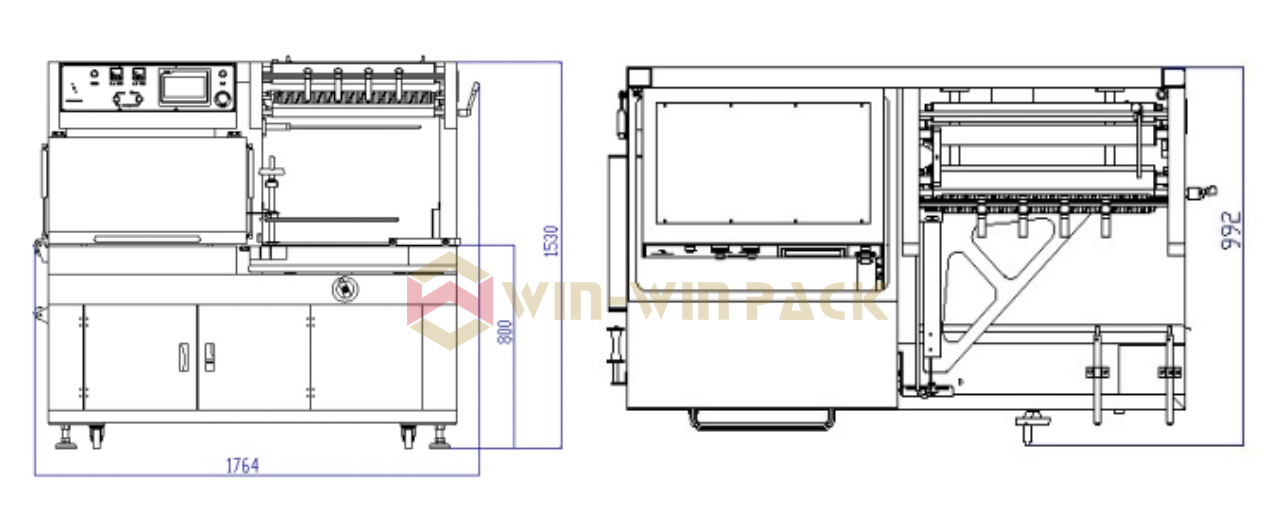

1. External Dimension of the Machine

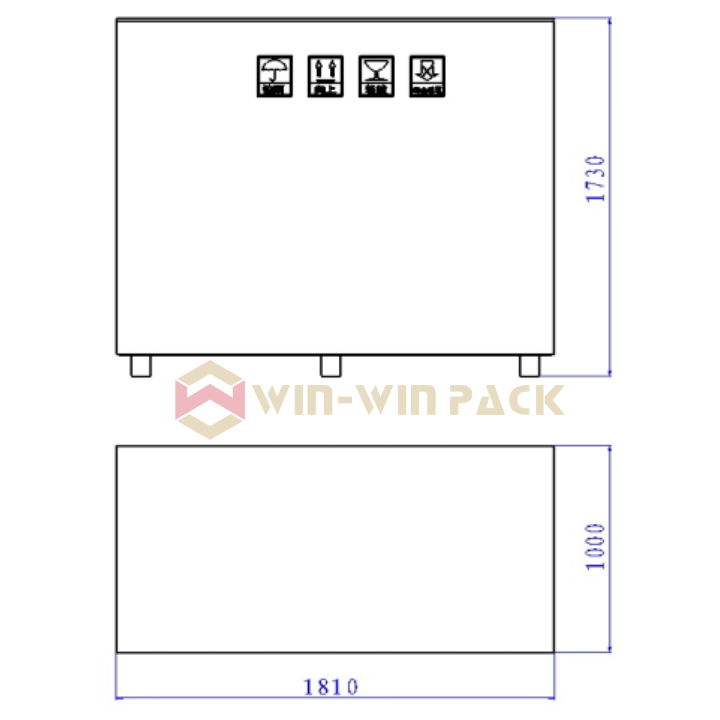

2. Packing box size of the machine

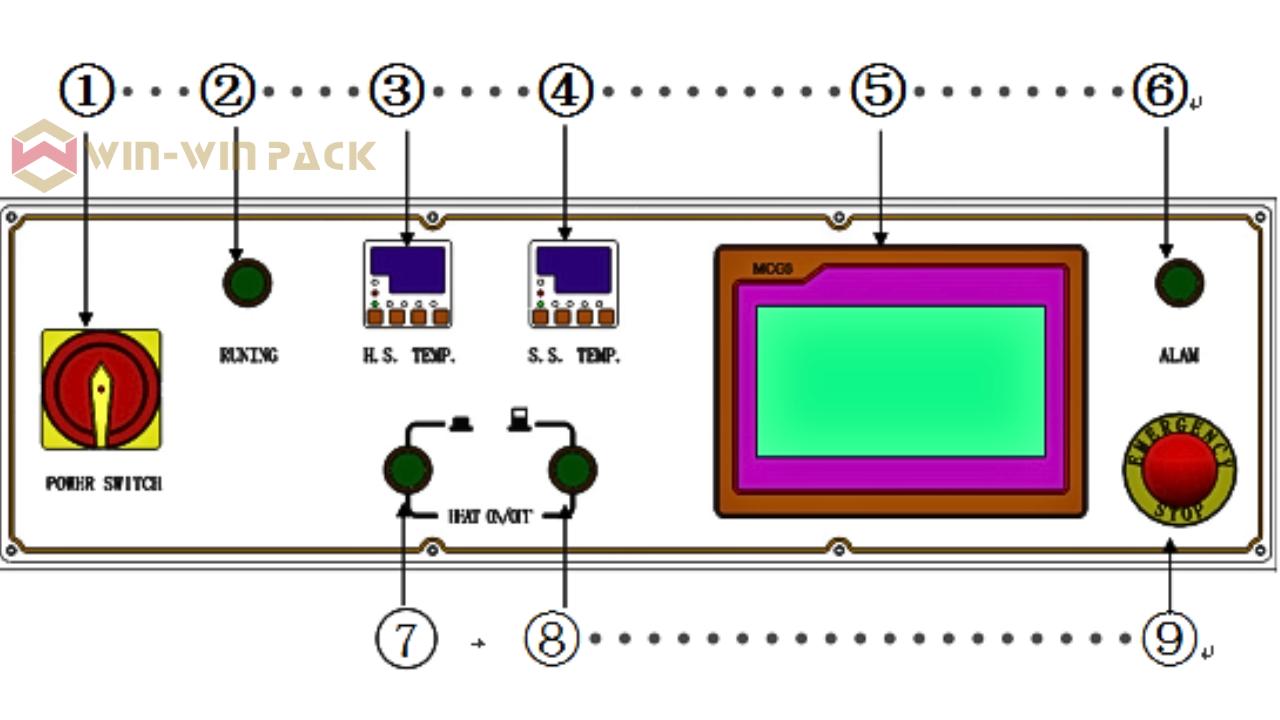

3. The name and function of machine panel

1.Power Switch：Turn off or switch the machine on；

2.Running pilot light：The machine runs automatically when the light is on, otherwise it will stop automatically；

3.Transverse sealing thermostat：set up the heating temperature；

4.Vertical sealing thermostat：set up the heating temperature；

5.Touchscreen：Operation interface and setting machine parameter；

6.Alarm light：alarming；

7.Horizontal sealing heat switch：turn on or turn off；

8.Vertical sealing heat switch：turn on or turn off；

9.Emergency stop：Cut off the power supply；
