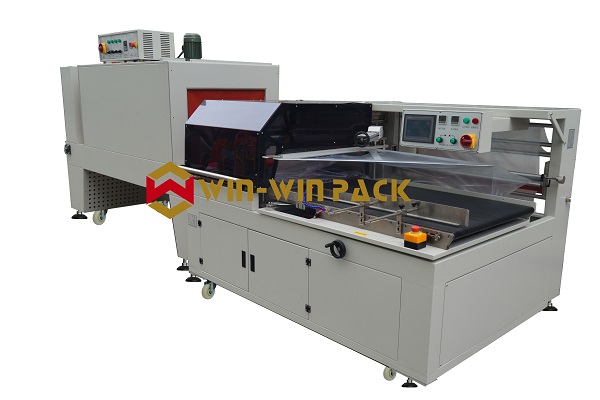

Hot shrinkage packaging machine installation should pay attention to several points?

2018-12-25

1. Thermal shrinkage packaging machine and winding machine the same because of the consumption of power is very large, so the power input power must be greater than the nominal power on the contraction machine nameplate, otherwise it is easy to burn down the circuit or electrical components.

2. Machines like baling machines must be reliably grounded to protect personal safety.

3, Each machine factory is attached to a power cable, the end of the lead part with a power supply identification symbol, must be correctly connected, illegal operation may lead to electric shock.

4. When the machine stipulates that the voltage is three-phase 380V power supply, the zero line must be input at the same time, that is, the standard three-phase four-wire system other packaging equipment is just like the vacuum packaging machine.Otherwise, the machine can not work normally, and it is easy to burn internal electrical parts.

5. The machine must be installed horizontally, otherwise the service life of the electric heat pipe will be shortened.In the case of a network-belt conveyor, the slanting installation will cause the conveyor belt to deviate from the center.

6. When the machine is in continuous use for more than three months, the heat-resistant wire of the shrinkage chamber shall be inspected and replaced as appropriate according to its aging degree.

7, The operation of the machine, the palm of the operator and other parts are not allowed to contact with the operation of the machine parts, especially the contraction of the indoor temperature is very high, it is easy to burn.

8. After the packaging work, the heating switch should be turned off to allow the conveyor motor and fan motor to continue running for about 10 minutes before cutting off the whole power supply.
